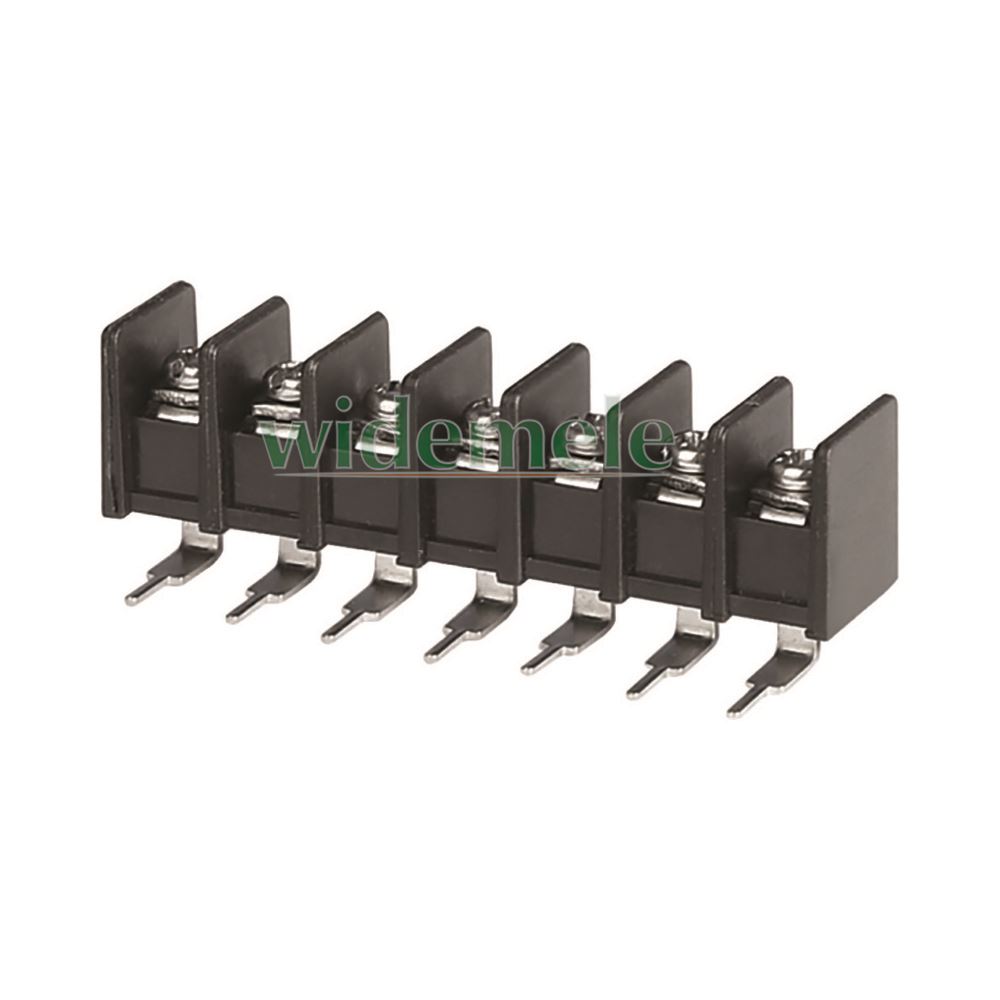

PCB Barrier Terminal Blocks 415R
| TYPE: | 415R |
| Brand: | Widemele |
| Description: | PCB Barrier Terminal Blocks, with clear wiring, can connect all types of wires with a cross-sectional area of 0.5mm ² to 70mm ², with a spacing pitch of 6.35-27mm to choose, and can be provided with covered or uncovered styles. The product design complies with international standards such as UL1059 and IEC60947. The commonly used spacing pitch is 6.35 7.62 8.25 9.5mm. The color is usually black. | PIN distance: 6.35 7.62 8.25 9.5mm (02-09P) | Rated voltage/current UL: 300V/30A | Rated voltage/current IEC: 600V/32A | Voltage endurance: AC2500V/Min | Wire diameter: 22-12AWG 0.5-4mm ² | Temperature range: -40 ℃ -+105 ℃ | Tin adhesion: 260+/-5 ℃ | Torque: M4 12.24kgf.cm/1.2N.m/10.53Lb. in | Plastic parts: PA66, flame retardant: V-0 | Cover plate: PC | Plastic color: Black | Screw (steel/nickel plated) | Solder legs: brass plated with tin |
Details：
