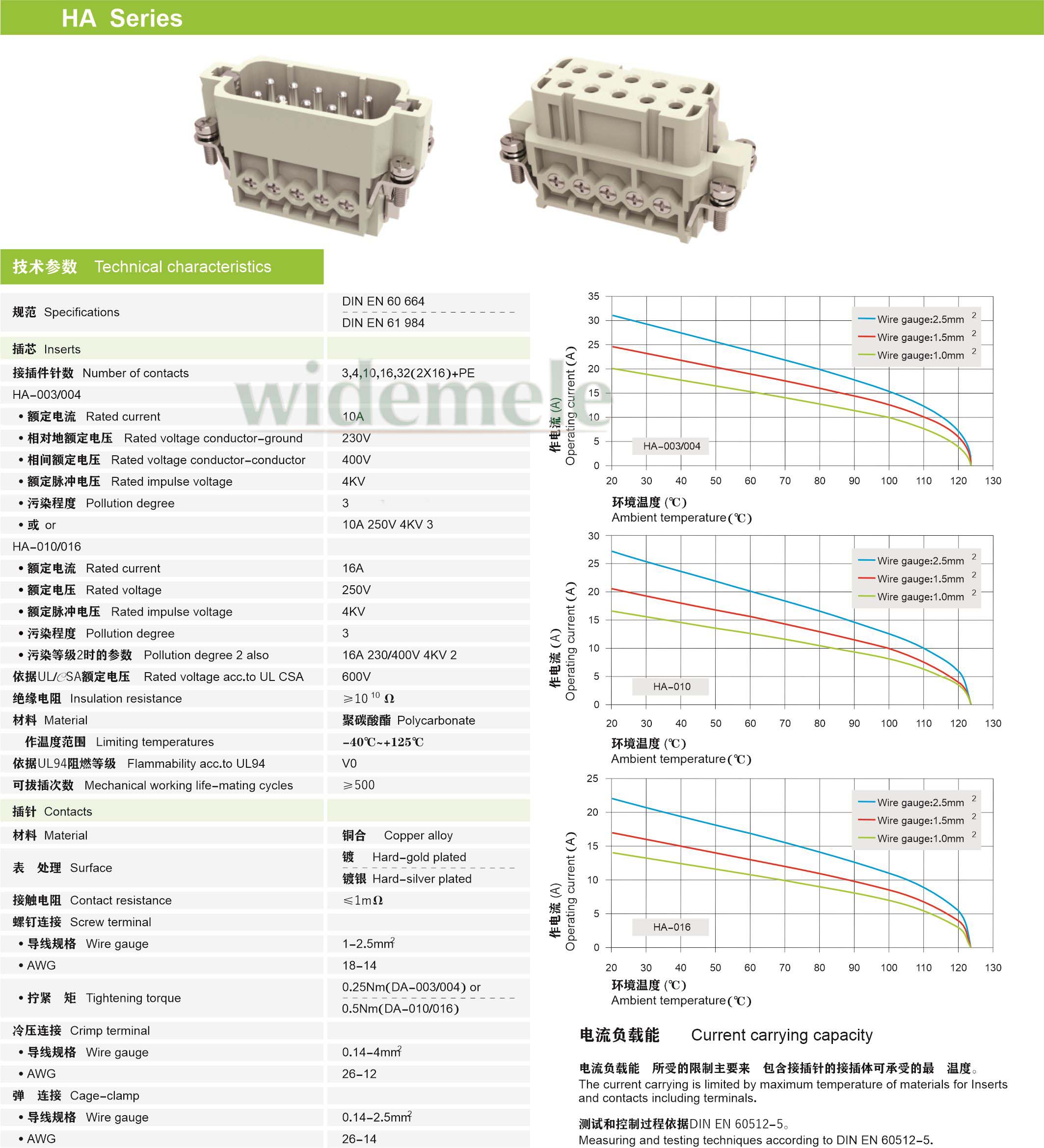

Heavy Duty Connector HA-010-M

Update Time: 2024/4/11   | Type： HA-010-M



Brand: Widemele
Description: Product structure of heavy-duty connectors: Upper/lower shell: aluminum alloy, spray painted. Male/Female Insert: PC Plastic Parts (-40 ℃~125 ℃). Male/female pins: Copper alloy (silver plated, gold plated). Cable joint: ordinary metal/plastic. Features of heavy-duty connector products: The heavy-duty connector is specifically designed to meet the requirements of harsh environmental conditions; It can achieve pre installation of a large number of complex circuits, improve the efficiency of equipment installation, and reduce wiring error rates; It can provide high integration connectivity and rich combination methods, improving the effective utilization of device space; Convenient connection, efficient implementation of modular structure for various functions of the equipment, and easy installation, maintenance, and repair; High protection (IP65/68), providing effective protection in harsh environments such as sand, cold, ice, snow, and oil pollution;



Products details
More Products
HT396K

HT396K

HT396K

PCB Pluggable Terminal Blocks, using universal and easy to maintain wire connections, can be applied to almost all types of equipment in various industries and markets. Suitable for all types of wires with a diameter of 0.2-10mm ², with a pitch of 2.5-10.16mm. Use screws and springs to strip the wires for connection. The product design complies with international standards such as IEC61984 and UL1059. Common pitch: 2.5 3.5 3.81 5.0 5.08 7.5 7.62mm. The color is usually green. Product line number: 02Pin-24Pin. Material: PA66. V-0 flame retardant. | PIN distance: 2.5 3.5 3.81 5.0 5.08 7.5 7.62mm (02-24P) | Rated voltage/current UL: 300V/8A | Rated voltage/current IEC: 250V/7A | Voltage endurance: AC1600V/Min | Wire diameter: 28-16AWG 0.5-1.5mm ² | Temperature range: -40 ℃ -+105 ℃ | Torque: M2, 2.04kgf.cm/0.2N.m/1.77Lb...
HT396R

HT396R

HT396R

PCB Pluggable Terminal Blocks, using universal and easy to maintain wire connections, can be applied to almost all types of equipment in various industries and markets. Suitable for all types of wires with a diameter of 0.2-10mm ², with a pitch of 2.5-10.16mm. Use screws and springs to strip the wires for connection. The product design complies with international standards such as IEC61984 and UL1059. Common pitch: 2.5 3.5 3.81 5.0 5.08 7.5 7.62mm. The color is usually green. Product line number: 02Pin-24Pin. Material: PA66. V-0 flame retardant. | PIN distance: 2.5 3.5 3.81 5.0 5.08 7.5 7.62mm (02-24P) | Rated voltage/current UL: 300V/8A | Rated voltage/current IEC: 250V/7A | Voltage endurance: AC1600V/Min | Wire diameter: 28-16AWG 0.5-1.5mm ² | Temperature range: -40 ℃ -+105 ℃ | Torque: M2, 2.04kgf.cm/0.2N.m/1.77Lb...
HT396V

HT396V

HT396V

PCB Pluggable Terminal Blocks, using universal and easy to maintain wire connections, can be applied to almost all types of equipment in various industries and markets. Suitable for all types of wires with a diameter of 0.2-10mm ², with a pitch of 2.5-10.16mm. Use screws and springs to strip the wires for connection. The product design complies with international standards such as IEC61984 and UL1059. Common pitch: 2.5 3.5 3.81 5.0 5.08 7.5 7.62mm. The color is usually green. Product line number: 02Pin-24Pin. Material: PA66. V-0 flame retardant. | PIN distance: 2.5 3.5 3.81 5.0 5.08 7.5 7.62mm (02-24P) | Rated voltage/current UL: 300V/8A | Rated voltage/current IEC: 250V/7A | Voltage endurance: AC1600V/Min | Wire diameter: 28-16AWG 0.5-1.5mm ² | Temperature range: -40 ℃ -+105 ℃ | Torque: M2, 2.04kgf.cm/0.2N.m/1.77Lb...
1DG-3.5/3.81

1DG-3.5/3.81

1DG-3.5/3.81

PCB Pluggable Terminal Blocks, using universal and easy to maintain wire connections, can be applied to almost all types of equipment in various industries and markets. Suitable for all types of wires with a diameter of 0.2-10mm ², with a pitch of 2.5-10.16mm. Use screws and springs to strip the wires for connection. The product design complies with international standards such as IEC61984 and UL1059. Common pitch: 2.5 3.5 3.81 5.0 5.08 7.5 7.62mm. The color is usually green. Product line number: 02Pin-24Pin. Material: PA66. V-0 flame retardant. | PIN distance: 2.5 3.5 3.81 5.0 5.08 7.5 7.62mm (02-24P) | Rated voltage/current UL: 300V/8A | Rated voltage/current IEC: 250V/7A | Voltage endurance: AC1600V/Min | Wire diameter: 28-16AWG 0.5-1.5mm ² | Temperature range: -40 ℃ -+105 ℃ | Torque: M2, 2.04kgf.cm/0.2N.m/1.77Lb...
1DGA-3.81

1DGA-3.81

1DGA-3.81

PCB Pluggable Terminal Blocks, using universal and easy to maintain wire connections, can be applied to almost all types of equipment in various industries and markets. Suitable for all types of wires with a diameter of 0.2-10mm ², with a pitch of 2.5-10.16mm. Use screws and springs to strip the wires for connection. The product design complies with international standards such as IEC61984 and UL1059. Common pitch: 2.5 3.5 3.81 5.0 5.08 7.5 7.62mm. The color is usually green. Product line number: 02Pin-24Pin. Material: PA66. V-0 flame retardant. | PIN distance: 2.5 3.5 3.81 5.0 5.08 7.5 7.62mm (02-24P) | Rated voltage/current UL: 300V/8A | Rated voltage/current IEC: 250V/7A | Voltage endurance: AC1600V/Min | Wire diameter: 28-16AWG 0.5-1.5mm ² | Temperature range: -40 ℃ -+105 ℃ | Torque: M2, 2.04kgf.cm/0.2N.m/1.77Lb...
1DGB-3.81

1DGB-3.81

1DGB-3.81

PCB Pluggable Terminal Blocks, using universal and easy to maintain wire connections, can be applied to almost all types of equipment in various industries and markets. Suitable for all types of wires with a diameter of 0.2-10mm ², with a pitch of 2.5-10.16mm. Use screws and springs to strip the wires for connection. The product design complies with international standards such as IEC61984 and UL1059. Common pitch: 2.5 3.5 3.81 5.0 5.08 7.5 7.62mm. The color is usually green. Product line number: 02Pin-24Pin. Material: PA66. V-0 flame retardant. | PIN distance: 2.5 3.5 3.81 5.0 5.08 7.5 7.62mm (02-24P) | Rated voltage/current UL: 300V/8A | Rated voltage/current IEC: 250V/7A | Voltage endurance: AC1600V/Min | Wire diameter: 28-16AWG 0.5-1.5mm ² | Temperature range: -40 ℃ -+105 ℃ | Torque: M2, 2.04kgf.cm/0.2N.m/1.77Lb...
1DGKA-3.5/3.81

1DGKA-3.5/3.81

1DGKA-3.5/3.81

PCB Pluggable Terminal Blocks, using universal and easy to maintain wire connections, can be applied to almost all types of equipment in various industries and markets. Suitable for all types of wires with a diameter of 0.2-10mm ², with a pitch of 2.5-10.16mm. Use screws and springs to strip the wires for connection. The product design complies with international standards such as IEC61984 and UL1059. Common pitch: 2.5 3.5 3.81 5.0 5.08 7.5 7.62mm. The color is usually green. Product line number: 02Pin-24Pin. Material: PA66. V-0 flame retardant. | PIN distance: 2.5 3.5 3.81 5.0 5.08 7.5 7.62mm (02-24P) | Rated voltage/current UL: 300V/8A | Rated voltage/current IEC: 250V/7A | Voltage endurance: AC1600V/Min | Wire diameter: 28-16AWG 0.5-1.5mm ² | Temperature range: -40 ℃ -+105 ℃ | Torque: M2, 2.04kgf.cm/0.2N.m/1.77Lb...
1DGKAM-3.5/3.81

1DGKAM-3.5/3.81

1DGKAM-3.5/3.81

PCB Pluggable Terminal Blocks, using universal and easy to maintain wire connections, can be applied to almost all types of equipment in various industries and markets. Suitable for all types of wires with a diameter of 0.2-10mm ², with a pitch of 2.5-10.16mm. Use screws and springs to strip the wires for connection. The product design complies with international standards such as IEC61984 and UL1059. Common pitch: 2.5 3.5 3.81 5.0 5.08 7.5 7.62mm. The color is usually green. Product line number: 02Pin-24Pin. Material: PA66. V-0 flame retardant. | PIN distance: 2.5 3.5 3.81 5.0 5.08 7.5 7.62mm (02-24P) | Rated voltage/current UL: 300V/8A | Rated voltage/current IEC: 250V/7A | Voltage endurance: AC1600V/Min | Wire diameter: 28-16AWG 0.5-1.5mm ² | Temperature range: -40 ℃ -+105 ℃ | Torque: M2, 2.04kgf.cm/0.2N.m/1.77Lb...
