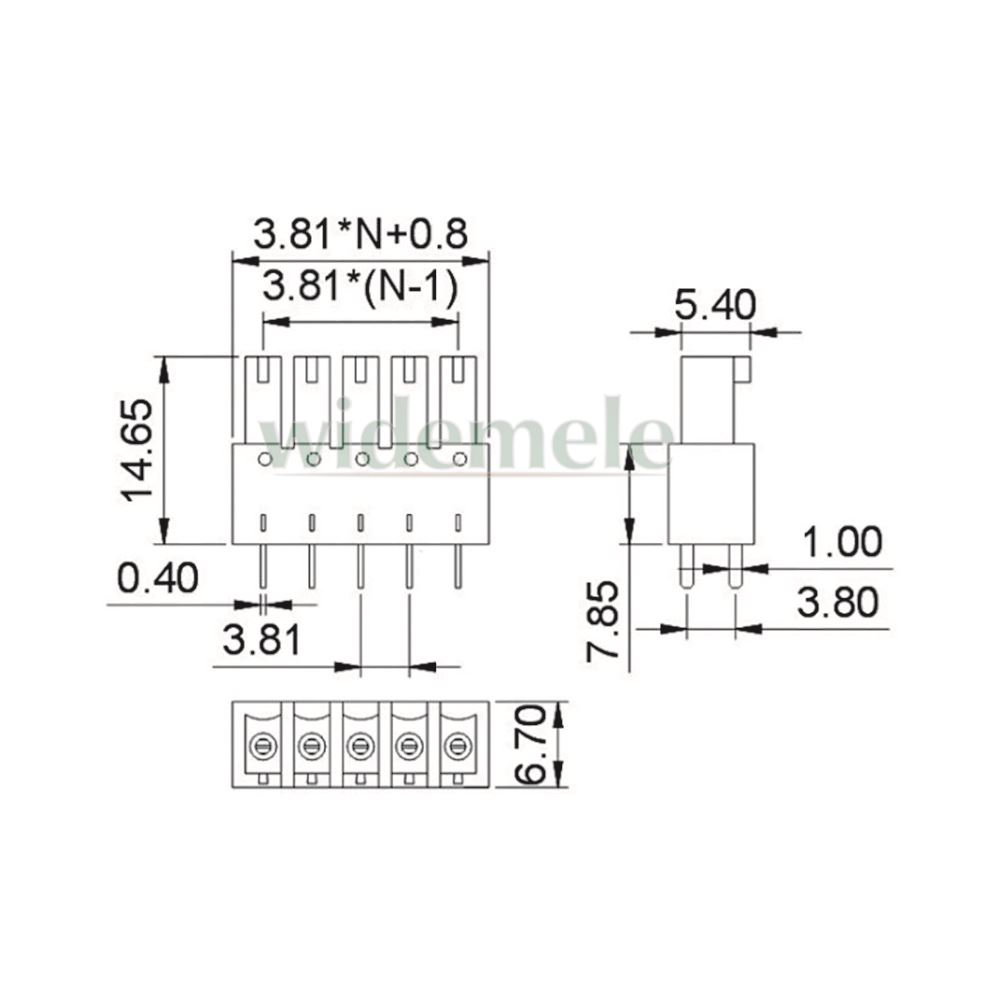

Pluggable PCB Terminal Blocks 1DGB-3.81
Update Time: 2025/2/10
| Type： 1DGB-3.81
| Brand: | Widemele |
| Description: | PCB Pluggable Terminal Blocks, using universal and easy to maintain wire connections, can be applied to almost all types of equipment in various industries and markets. Suitable for all types of wires with a diameter of 0.2-10mm ², with a pitch of 2.5-10.16mm. Use screws and springs to strip the wires for connection. The product design complies with international standards such as IEC61984 and UL1059. Common pitch: 2.5 3.5 3.81 5.0 5.08 7.5 7.62mm. The color is usually green. Product line number: 02Pin-24Pin. Material: PA66. V-0 flame retardant. | PIN distance: 2.5 3.5 3.81 5.0 5.08 7.5 7.62mm (02-24P) | Rated voltage/current UL: 300V/8A | Rated voltage/current IEC: 250V/7A | Voltage endurance: AC1600V/Min | Wire diameter: 28-16AWG 0.5-1.5mm ² | Temperature range: -40 ℃ -+105 ℃ | Torque: M2, 2.04kgf.cm/0.2N.m/1.77Lb. in | Plastic color: green | Plastic and fire rating: PA66 UL94V-0 | Hardware material: clamp (phosphor bronze/tin plated) | Screw (steel/galvanized) | Blocks (brass/nickel plated) | Needle: (brass/tin plated) | Holding force: ≥ 20N |
