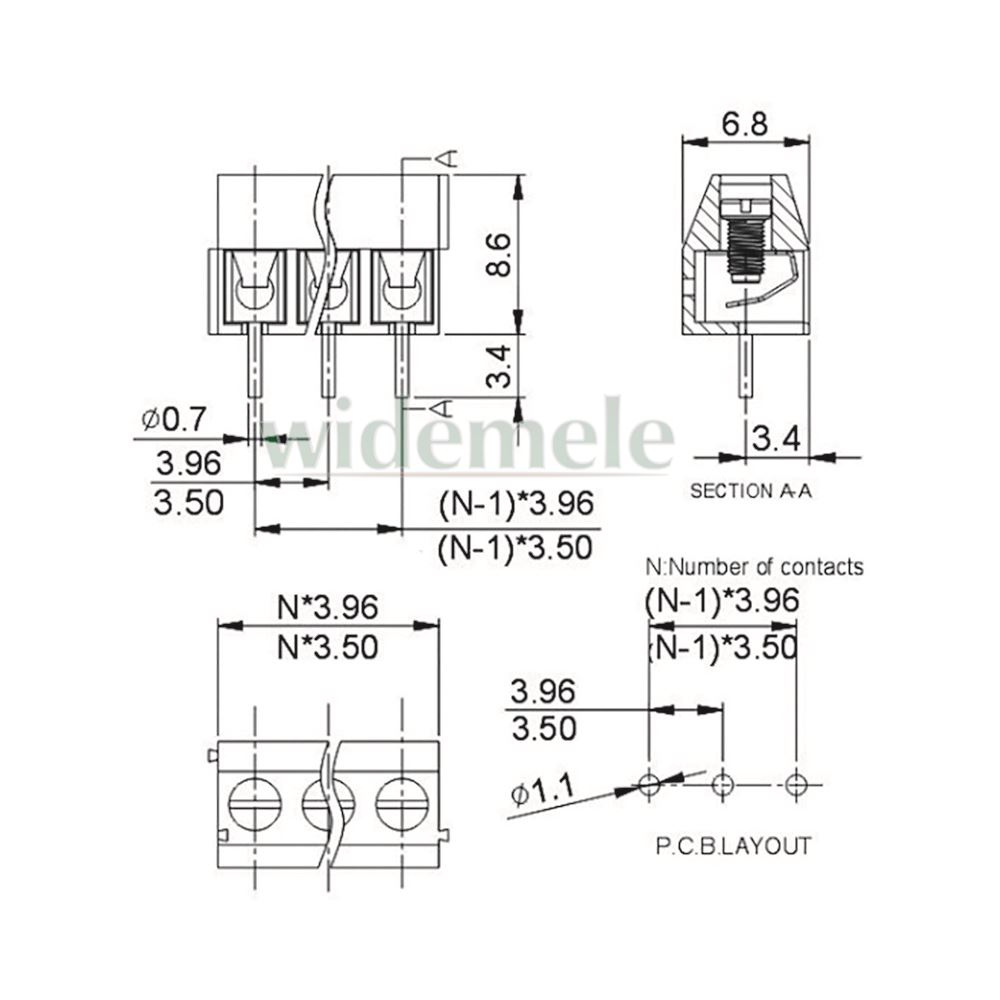

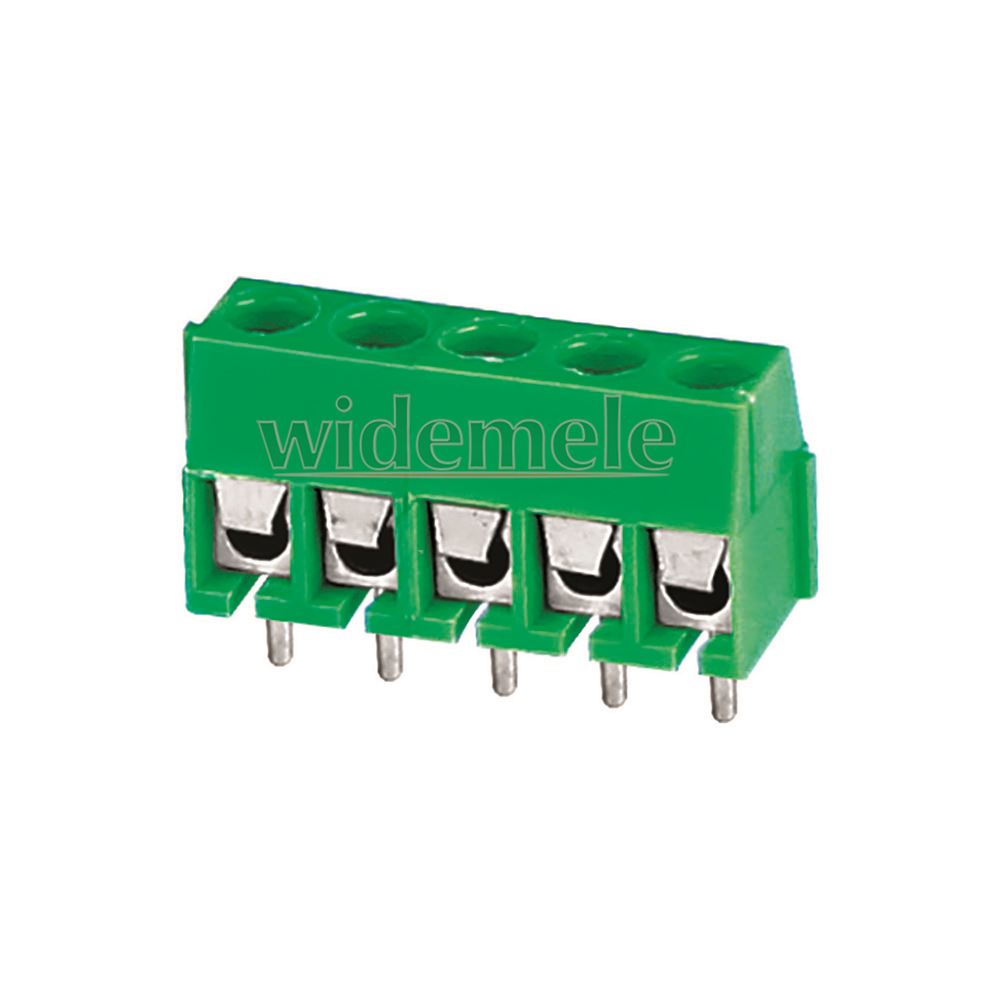

PCB Screw Terminal Blocks 396

Update Time: 2024/9/27   | Type： 396



Brand: Widemele
Description: Screw type PCB terminal block, with a structural design that combines convenient wiring and secure screw connections, can connect all types of wires with a cross-sectional area of 0.2mm ² to 35mm ², with a spacing pitch of 2.54mm to 15.0mm to choose. The product design complies with international standards such as IEC/EN60998 and UL1059. Common spacing pitch: 2.54 3.5 3.81 5.0 5.08 7.5 7.62 10.16mm. The color is usually green or blue. | PIN distance: 2.54 3.5 3.81 5.0 5.08 7.5 7.62 10.16mm (02-24P) | Rated voltage/current UL: 300V/10A | Rated voltage/current IEC: 400V/18A | Voltage endurance: AC2500V/Min | Wire diameter: 24-12AWG 1.0-2.5mm ² | Temperature range: -40 ℃ -+105 ℃ | Tin adhesion: 260+/-5 ℃ | Torque: M2.5, 4.08kgf.cm/0.4N.m/3.54Lb.in | Plastic parts: PA66, flame retardant: V-0 | Hardware material: Welding legs (brass/tin plated) | Screw (steel/galvanized) | Blocks (brass/nickel plated) | Clip: phosphor bronze/tin plated



Products details
