PCT-222 Wire Terminal Connectors

Update Time: 2024/1/20   | Type： PCT-222



Brand: Widemele

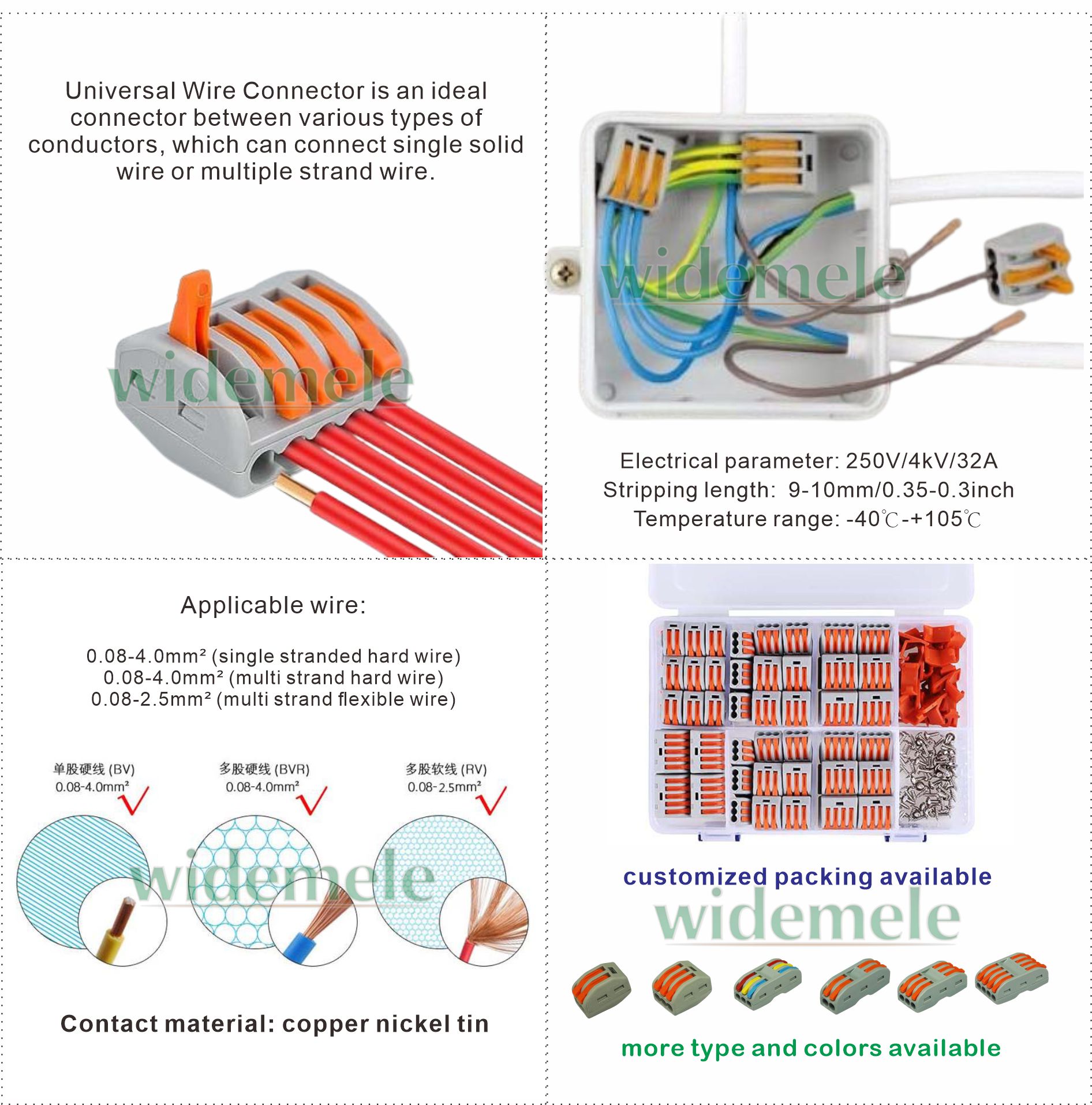

Description: Universal Wire Connector is an ideal connector between various types of conductors, which can connect single solid wire or multiple strand wire. | Electrical parameter: 250V/4kV/32A | Stripping length: 9-10mm | Applicable wire: 0.08-4.0mm² (single stranded hard wire), 0.08-4.0mm² (multi strand hard wire), 0.08-2.5mm130 (multi strand flexible wire)



Products details
